Custom Size & Position

Make shortcuts for any size and position you want. It can be in the percentage of a screen or pixel dimensions. Configure additional sizes and positions that trigger on repeated executions.

Custom Size & Position entries can be triggered by keyboard shortcut, and used elsewhere in the app like the following:

• in the Window Throw
• as a drag-to-screen edge Snap Area
• as a Snap Target
• in the Snap Panel
• in the menu bar menu

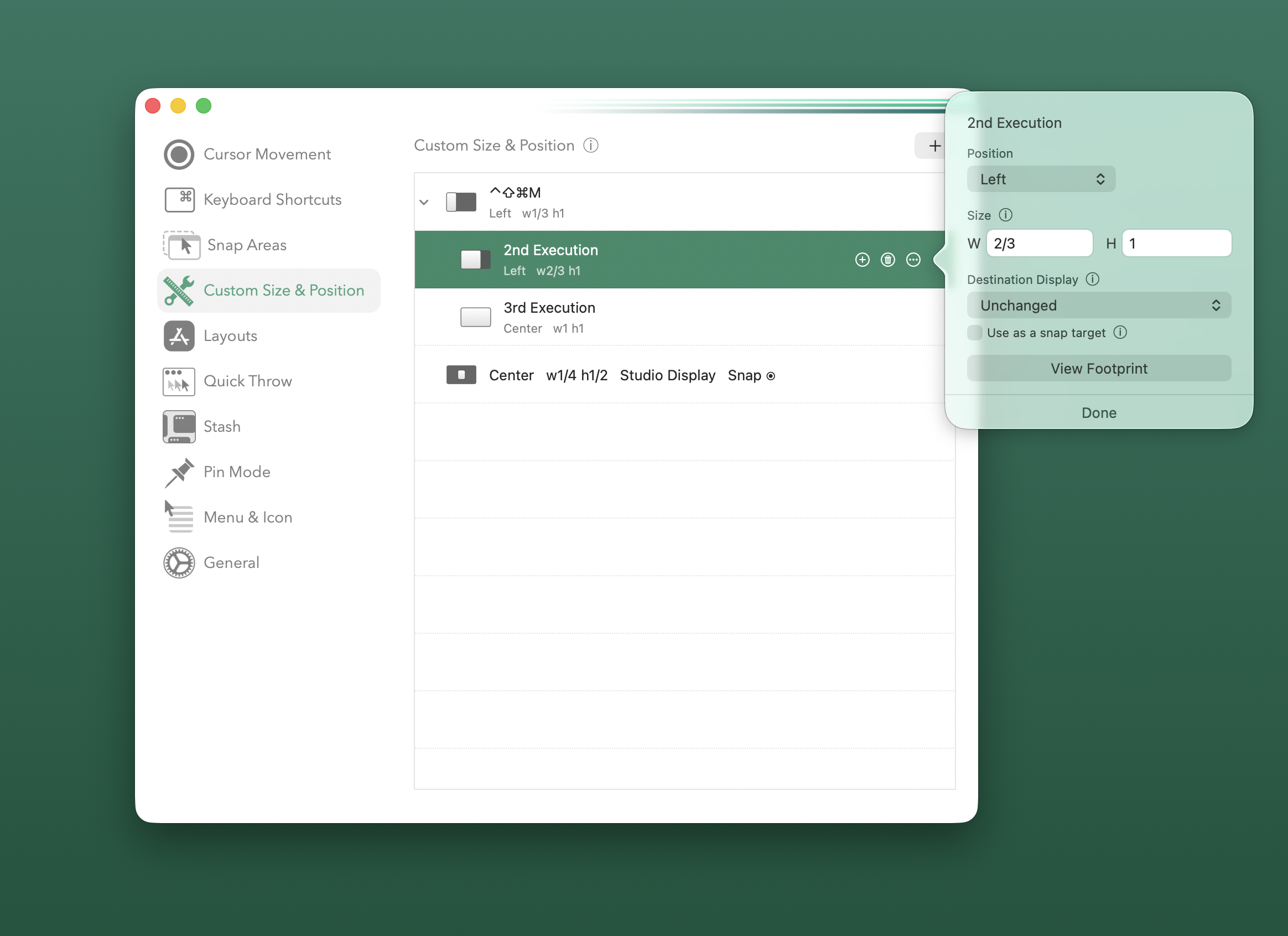

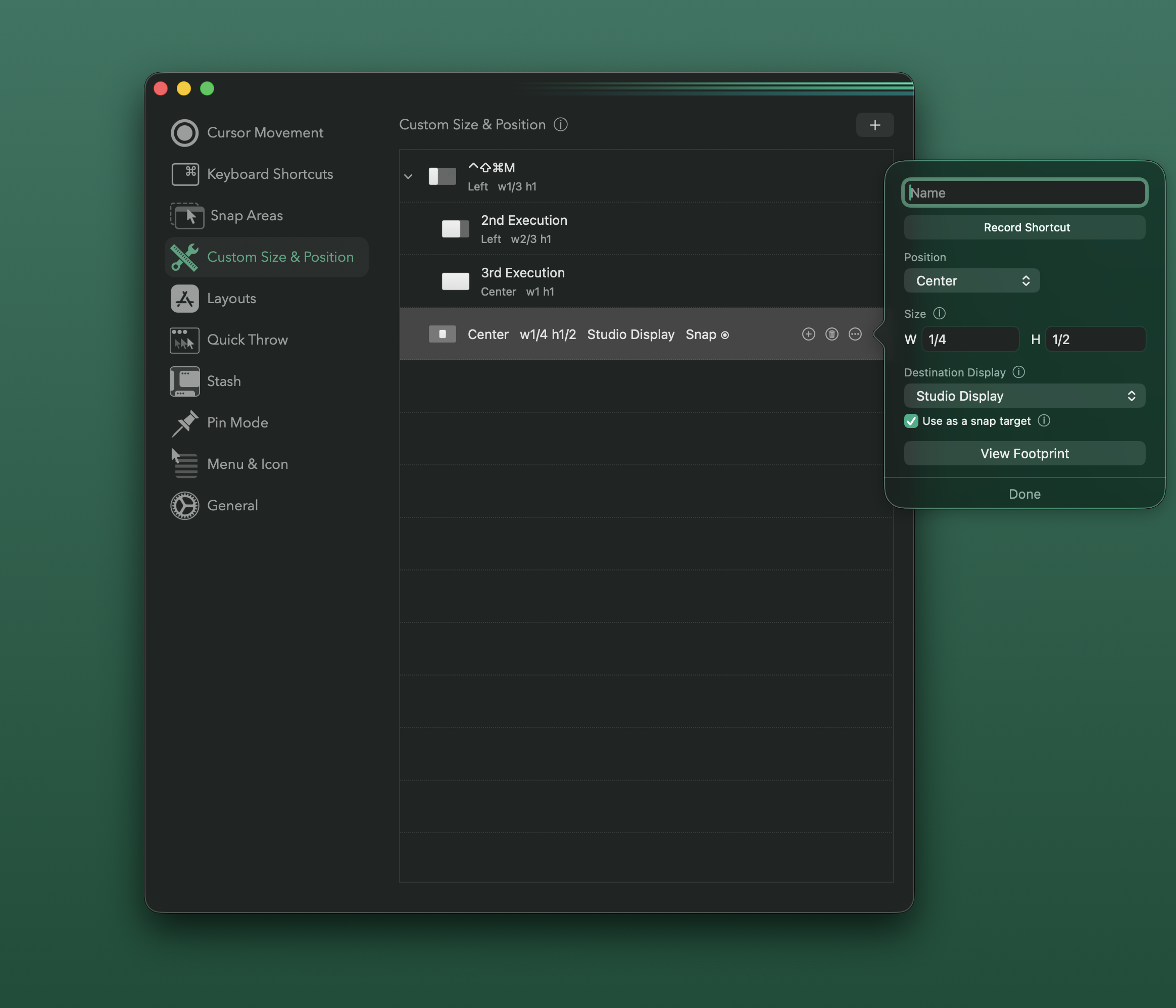

Configuration

Click the plus button in the top right to add a new Custom Size & Position entry. You can start with a blank template or select dimensions of an existing window.

Once an entry has been created, you can modify the following options by clicking on the row for the entry or the ellipsis button.

Options

• Name: Enter a name for the Custom Size & Position that will be used in the menus, throughout the app.
• Keyboard Shortcut
• Position: Center, Top, Bottom, Left, Right, Top Left, Top Right, Bottom Left, Bottom Right, Custom Origin, and Center Offset.
  • Specify the X and Y origin using Custom Origin.
  • Specify an offset from the center of the screen using Center Offset.
• Size: The width and height of the window.
• Destination Display: Unchanged, Next, Previous, Display by name (identifier), or by current ordered display number
  • The ordering of displays for Next/Previous or number is evaluated based on the current layout of the displays, from left to right, top to bottom.
• Use as a snap target: If enabled, this Custom Size & Position will be used as drag and drop targets for snapping. Drag a window to the target area to see the footprint and drop it to snap the window into place. In order to be used a snap target:

1. Width and height must be defined.
2. Custom positions must have X and Y defined.
3. The specified display must not be next or previous.

All of the numerical fields for Size and Position can be:

• fractions, whole, or decimal
• ≤ 1 for % of screen
• > 1 for pixels
• left blank to keep current the dimension unchanged

The View Footprint button allows you to show the footprint of the projected size/position of the entry.

Icons are automatically generated for the Custom Size & Position configured.

Repetitions

Press the ＋ on an existing Custom Size & Position entry to add another entry that will be executed when the command to trigger it is repeated.
